XINYI Stainless Steel Pressure Gauge Dial 100mm 160mm Electric Contact Pressure Gauge

Price : CN¥1,095.69/pieces 1-19 pieces

customized support : OEM, ODM, OBM

place of origin : Shaanxi, China

brand name : XINYIYB

model number : PGS23.100

Product Name : Electric-contract Pressure Gauge

Pressure range : 0~600 Bar

Accuracy : CL 1.0

warranty : 2Years

Dial Size : 100/160MM

Material : Stainless steel

Dial : Aluminium, white, black lettering

Window : Laminated safety glass

Ambient temperature : -20 ... +60 °C [-4 ... 140 °F]

Process connection : G1/2,G1/4,G3/8,1/2NPT,M20 x 1.5,others on request

Scale : Single scale

Contact Now

XINYI Stainless Steel Pressure Gauge Dial 100 MM Electric-Contract Pressure Gauges With Versatile Mounting Options

Products Description

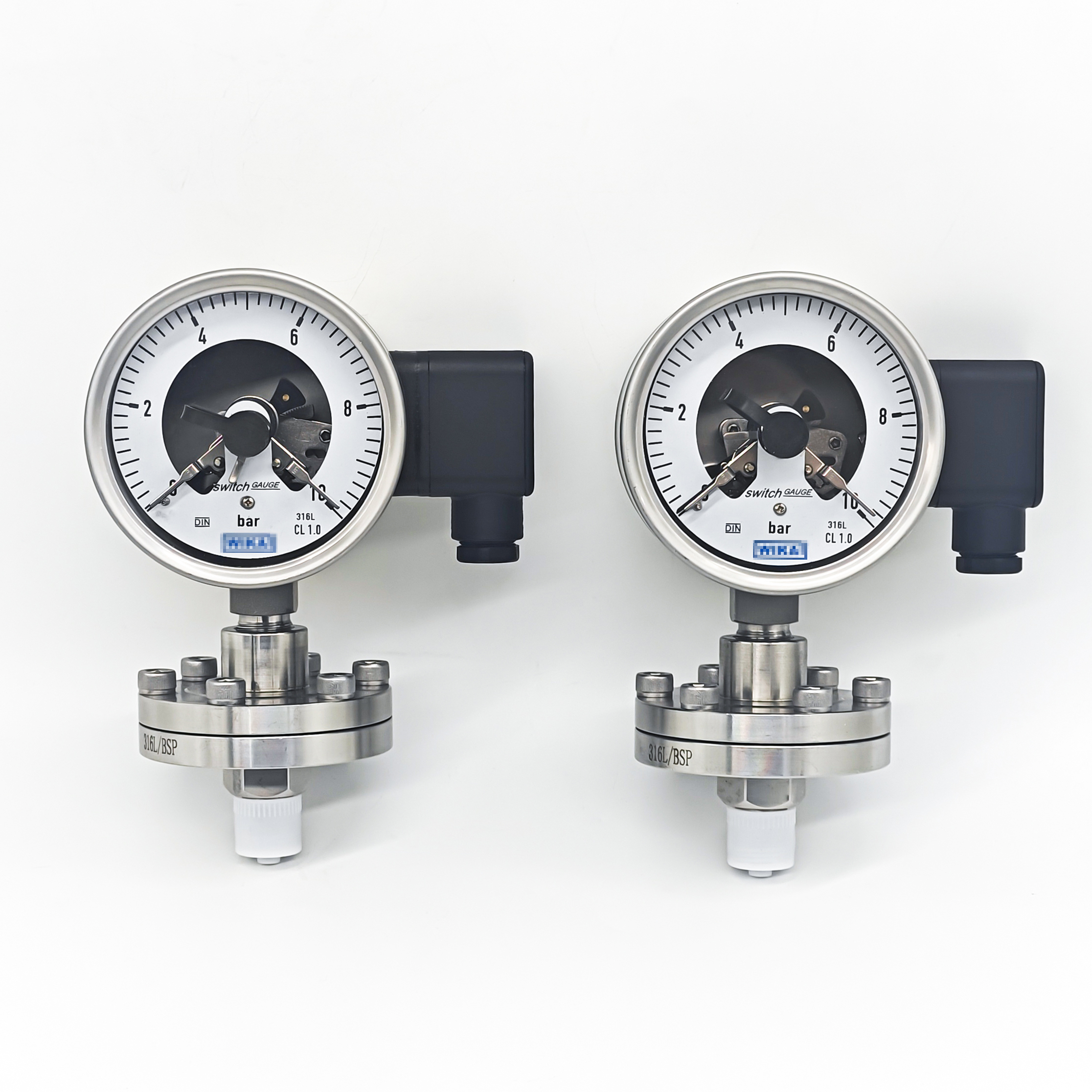

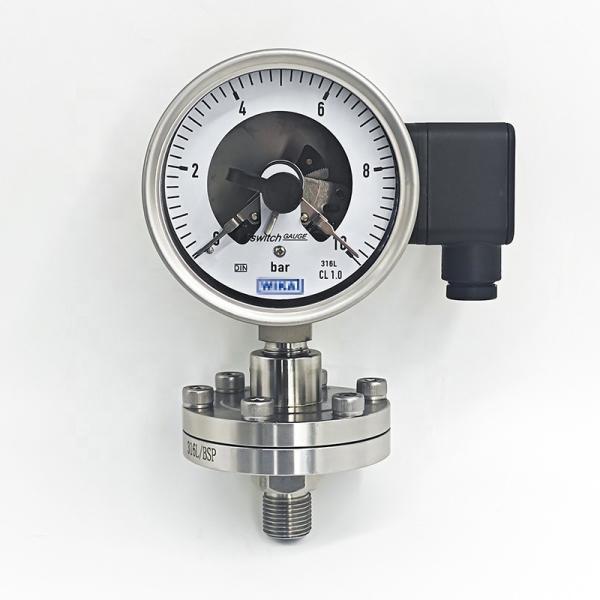

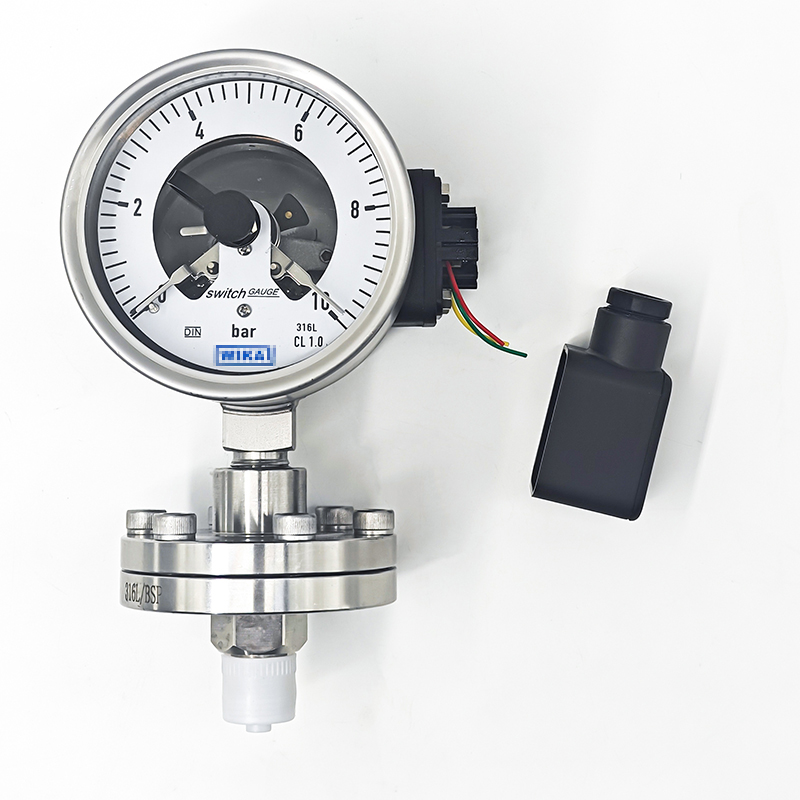

Electric-contact Pressure Gauge

Wherever the process pressure has to be indicated locally and, at the same time, circuits need to be switched, the model PGS23.1x0 switchGAUGE finds its use. Switch contacts (electrical switch contacts) make or break an electric control circuit dependent upon the pointer position of the indicating measuring instrument. The switch contacts are adjustable over the full extent of the scale range (see DIN 16085),and are mounted predominantly below the dial, though also partly on top of the dial. The instrument pointer (actual value pointer) moves freely across the entire scale range, independent of the setting. The set pointer can be adjusted using a removable adjust- ment key in the window.

Switch contacts consisting of several contacts can also be set to a single set point. Contact actuation is made when the actual value pointer travels beyond or below the desired set point.

The pressure gauge is manufactured in accordance with DIN 16085 and fulfils all requirements of the relevant stand-ards (EN 837-1) and regulations for the on-site display of the working pressure of pressure vessels.

As switch contacts, magnetic snap-action contacts, reed switches, inductive contacts and electronic contacts are available. Inductive contacts can be used in hazardous areas. For triggering programmable logic controllers (PLC), electronic contacts and reed switches can be used.

XINYI Stainless Steel Pressure Gauge Dial 100mm 160mm Electric Contact Pressure Gauge

Pressure Range	0-600bar
Accuracy	CL1.0
Operating Temperature	-20°C to +60°C
Thread	G1/2,G1/4,G3/8,1/2NPT,M20 x 1.5,others on request
Connector	High-quality stainless steel
Steady	Full Scale
Dial Material	Customizable
