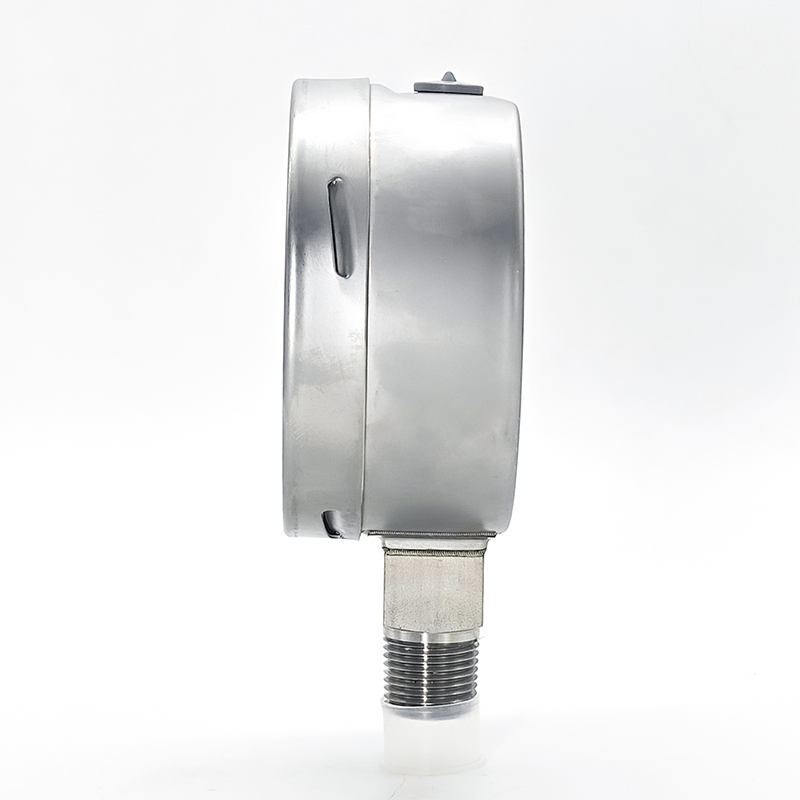

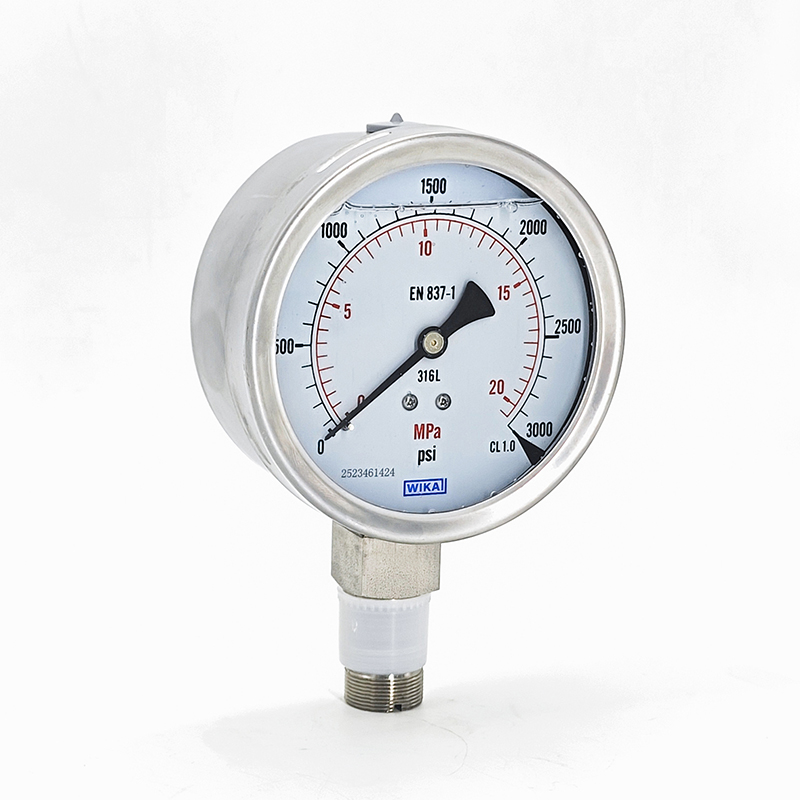

233.50.100 WIKA Stainless Steel Bourdon Tube Pressure Gauge Shock Resistant Class 1.6/1.0

Price : CN¥401.76/sets 1-19 sets

Product Name : Bourdon Tube Pressure Gauge

warranty : 1 Year

customized support : OEM, ODM, OBM

place of origin : Shaanxi, China

brand name : WIKA

model number : 233.50

type : Digital Pressure Gauges

material : SS316

size : 100mm

weight : 1kg

Measuring range : 0-25 Bar

Size : 63 / 100/160 mm

Accuracy : Class 1.6 / 1.0

Connection type : thread

Ambient temperature : -40 - (+60 °C)

Unit : bar/ psi/ kg/cm²/ kPa/ MPa

Contact Now

Class 1.6/1.0 Accuracy 233.50.100 WIKA All Stainless Steel Bourdon Tube Pressure Gauge Shock Resistant 1kg Capacity

Product Description

This high-quality Bourdon tube pressure gauge has been designed especially for the process industry.The use of high-quality stainless steel materials and the robust design are geared to applications in the chemical and process engineering industries. Thus the instrument is suitable for liquid and gaseous media, also in aggressive environments.

233.50.100 WIKA Stainless Steel Bourdon Tube Pressure Gauge Shock Resistant Class 1.6/1.0

Specification

item	value
Type	Digital Pressure Gauges
Place of Origin	China
	Shaanxi
Warranty	1 Year
Customized support	OEM, ODM, OBM
Brand Name	WIKA
Model Number	233.50
Material	SS316
Size	100mm
Weight	1kg
Product Name	pressure gage
Measuring range	0-25 Bar
Size	63 / 100/160 mm
Accuracy	Class 1.6 / 1.0
Connection type	thread
Material	SS316
Ambient temperature	-40 - (+60 °C)
Unit	bar/ psi/ kg/cm²/ kPa/ MPa

Applications

■ For gaseous and liquid aggressive media that are not highly viscous or crystallising, also in aggressive environments ■ Chemical and petrochemical industries, oil and gas industry, power engineering and also water and wastewater technology ■ Machine building and general plant construction

Special features

■ Excellent load cycle stability and shock resistance ■ With case filling (model 233.50) for applications with high dynamic pressure loads and vibrations ■ Completely from stainless steel ■ Scale ranges from 0 … 0.6 to 0 … 1,600 bar or 0 ... 10 to 0 ... 20,000 psi ■ QR code on dial links to instrument-specific information
