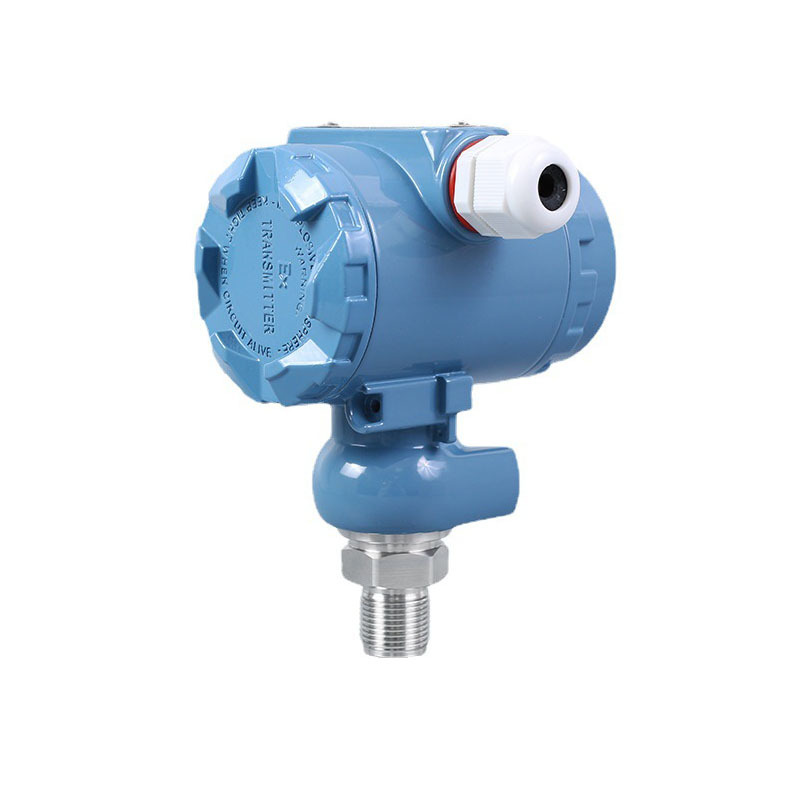

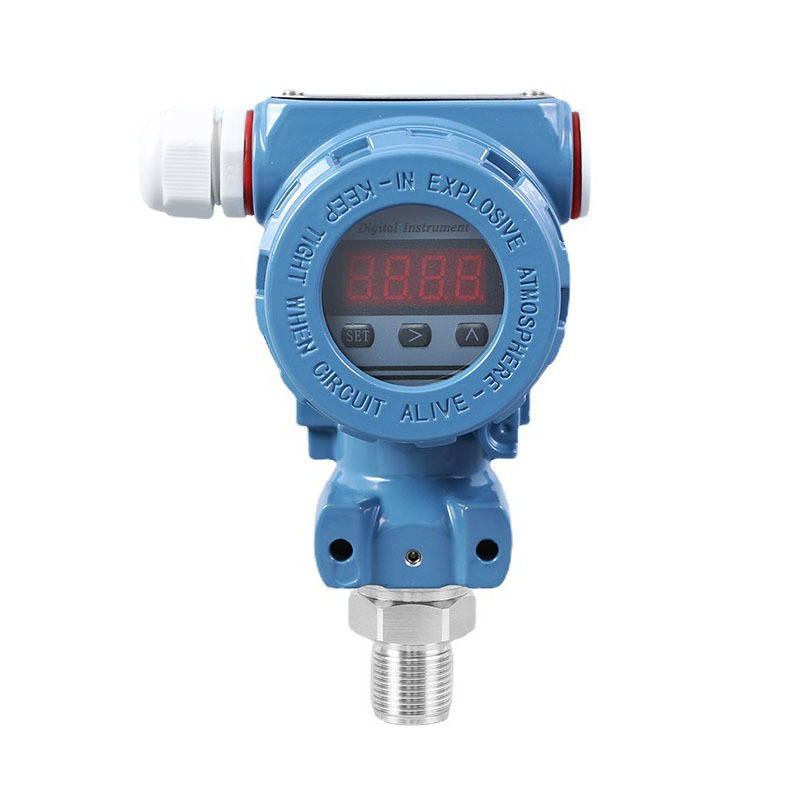

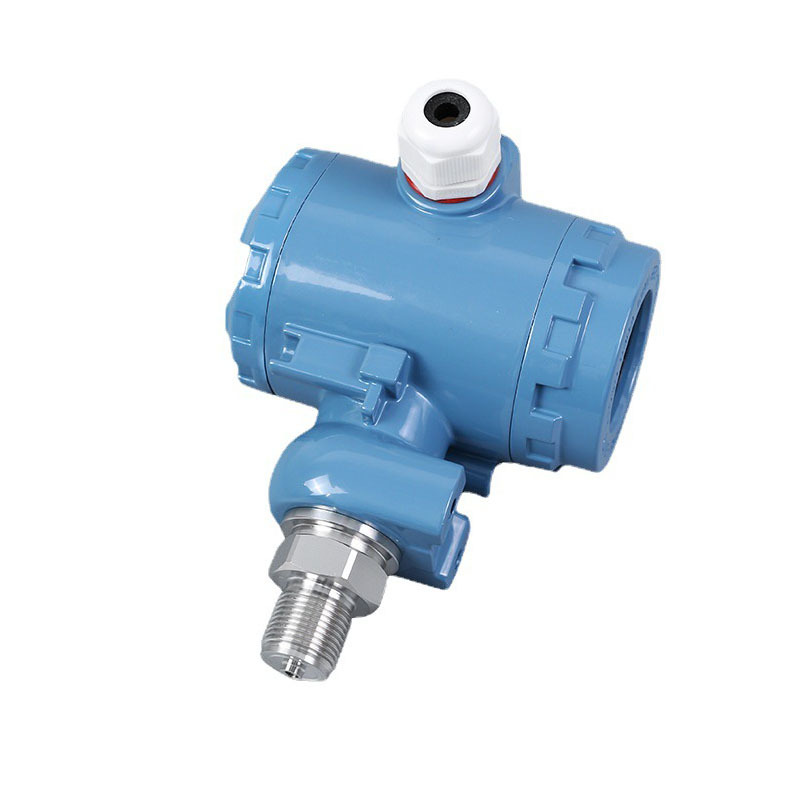

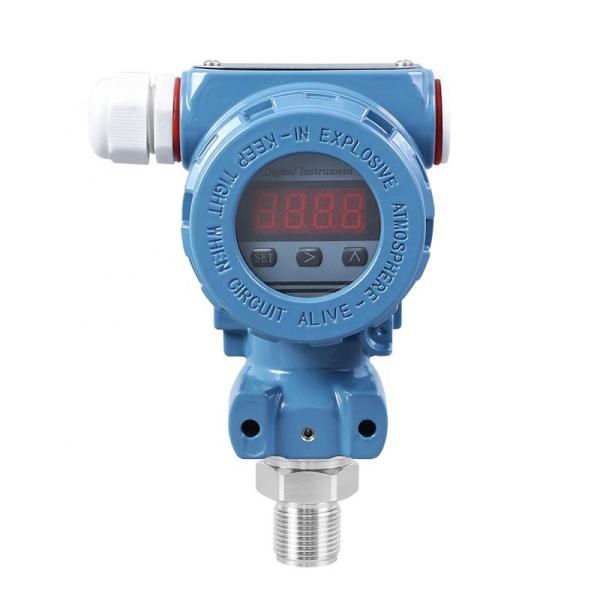

316L Stainless Steel Piezoresistive Pressure Transmitter IP65 High Precision

Name: 316L Stainless Steel Piezoresistive Pressure Transmitter IP65 High Precision
Brand: XINYI
Price: 1 USD

China 316L Stainless Steel Piezoresistive Pressure Transmitter IP65 High Precision wholesale

Brand Name : XINYI

Model Number : 2088

Certification : CE

Place of Origin : China

MOQ : 1

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability : 1000/month

Delivery Time : 5-8 work days

Packaging Details : carton

Protection class : IP 65 Pressure Transmitter

Pressure type : Gauge Pressure/Absolute Pressure/Sealed Pressure

Pressure range : -0.1...0~0.01...100MPa

Product Name : Pressure Transmitters

Material : 316L Stainless Steel

Accuracy : 0.5/0.2/0.1

Power supply : 12~24VDC

compensation temperature : -10~70℃

Output signal : 4~20mA

Medium : Fluids

Contact Now

YW-140 Series Stainless Steel Piezoresistive Pressure Transmitter

The YW-140 series universal digital pressure transmitter uses SS insulated film silicon pressure sensor as the signal measurement element, and achieves zero point and temperature performance over a wide temperature range by using a dedicated IC circuit on the transmitter.

1.Range:-0.1MPa┅0MPa~0.01MPa┅100MPa

2. Display real-time pressure value with display screen

3. Easy todebug thezero and full scale

4. Reversepolarityprotectionandcurrentlimitingprotection

5. Anti-lightning,anti-pressure impact

6. High precision, highstability, high reliability

Power supply	12~32VDC
Output signal	4mA～20mADC(2-wire)
Load voltage	≤(U-12)/0.02Ω
Housing	Explosion-proof cast aluminum housing
Sensor	Stainless steel316L
Sealed-ring	Viton
Media applicability	Fluid which has no corrosion to Stainless steel 316L and viton
Compensation temperature	-10℃～80℃
Medium temperature	-30℃～80℃(LCD display:-20℃～80℃)
Storage temperature	-40℃～125℃(LCD display:-20℃～80℃)
